Medical Needle
- Stainless Steel Needle Pipes
Stainless Steel Capilarries, Needle Pipes, Micro Tubings used extensively in Medical Injection needles, Blood Collecting needles, Veterinary needles, All kinds of punctures, Dispensing needles, Ink needles, Breathing needles.
Stainless steel capillary pipe / tube: it has good wear resistance, corrosion resistance, tensile resistance, softness, water resistance, high temperature resistance and excellent electromagnetic shielding performance. As a raw material, stainless steel capillary pipe / tube is widely used in medical treatment, medical equipment, chemical industry, pharmaceutical, water supply equipment and other fields.
- Product Specification :
Material Grade : SS304
Material : Stainless Steel
Shape : Round
Dimensions : Outer Diameter: 0.1mm-80mm / Length: ≤6000mm Or in coil
Tolerance : Outer Diameter: +/- 0.01mm~+/- 0.5mm / Thickness: +/- 10% or as your request
Unit Pipe Length : 3 meter
Pipe Fluid : Chemical, Water, Steam
Usage/Application : Medical Injection needles, Blood Collecting needles, Veterinary needles, All kinds of punctures
- Hypodermic tubing stainless steel :
Hypodermic tubing begins as a strip of stainless steel. It is rolled, welded, then plug drawn to its final gage size. This process gives the tubing the appearance of being seamless, as well as holding tight tolerances on both the OD and ID. It is commonly referred to as needle tubing.
- The choice of stainless steel grade :
Ultimately, the choice of stainless steel grade and aluminum plate and stainless steel grade will depend on factors such as the environment, temperature, and budget, and it's important to consult with a professional to ensure that you choose the best option for your needs. However, if you're looking for a reliable and cost-effective option for your piping needs, 316L stainless steel pipe is an excellent choice.

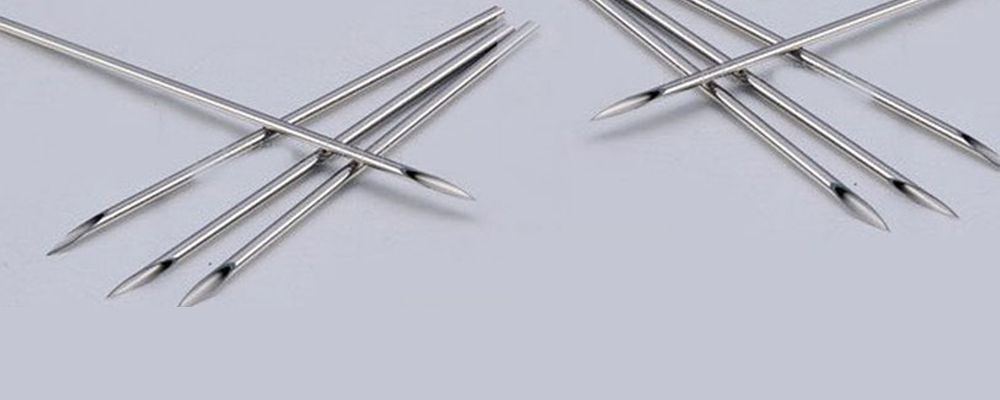

Medical needles are normally made from a stainless-steel tube through a process known as tube drawing where the tube is drawn through progressively smaller dies to make the needle. The end is bevelled to create a sharp pointed tip letting the needle easily penetrate the skin. From straightforward cut and deburred tubes to complex medical devices or industrial parts, we have the capabilities and services to fabricate parts to your specifications. Custom fabricated machining examples of our work include cardiac surgical instruments, veterinary implants. Tube forming, tube swaging, and special finishes are easily handled by us.
