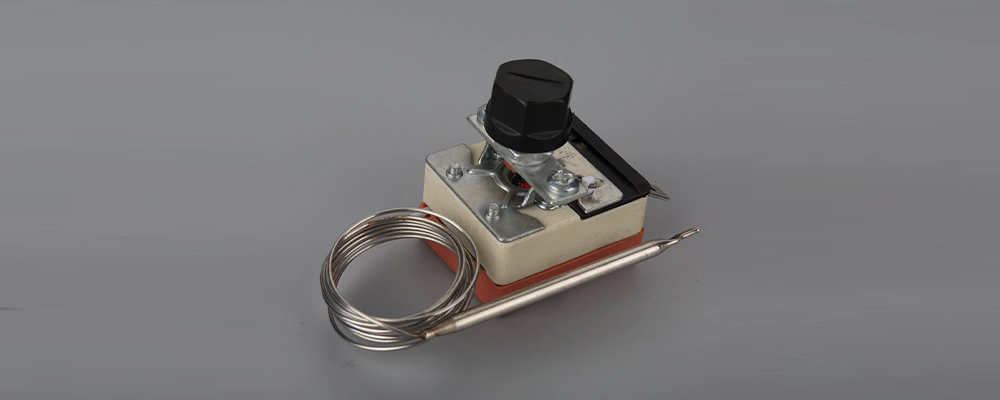

Capillary Tubes for Thermostat
- Capillary Tubes for Thermostat
Capillary tubes are essential components in thermostats, regulating temperature by sensing changes in pressure or temperature and activating or deactivating heating or cooling systems accordingly. In a thermostat, a capillary tube is filled with a temperature-sensitive fluid, typically a gas such as refrigerant or a liquid such as alcohol or mercury. Here's how capillary tubes are utilized in thermostats:
- Temperature Sensing
The capillary tube acts as a conduit for the temperature-sensitive fluid to travel between the temperature-sensing element (e.g., bulb or sensor) and the control mechanism (e.g., switch or valve) of the thermostat. When the temperature changes, the expansion or contraction of the temperature-sensitive fluid in the capillary tube causes pressure changes, which are transmitted to the control mechanism.
- Control Mechanism Activation
As the temperature increases or decreases, the pressure changes in the capillary tube actuate the control mechanism of the thermostat. This control mechanism may be a mechanical switch, a bimetallic strip, a diaphragm, or a valve, depending on the type of thermostat. The control mechanism responds to the pressure changes in the capillary tube by opening or closing electrical contacts, activating heating or cooling systems, or regulating the flow of fluids or gases.
- Temperature Setpoint Adjustment
The length and diameter of the capillary tube, as well as the type of temperature-sensitive fluid used, determine the temperature sensitivity and response time of the thermostat. By adjusting the length or diameter of the capillary tube or selecting a different temperature-sensitive fluid, the temperature setpoint of the thermostat can be calibrated to meet specific temperature control requirements.
- Accuracy and Reliability
Capillary tubes are designed to provide accurate and reliable temperature sensing and control in a wide range of applications, from household thermostats to industrial process control systems. They are constructed from materials that are compatible with the temperature-sensitive fluid and the operating conditions of the thermostat, ensuring long-term performance and durability.
- Applications
Capillary tubes are used in various types of thermostats, including mechanical thermostats, electromechanical thermostats, electronic thermostats, and programmable thermostats. They are employed in heating, ventilation, air conditioning, refrigeration, and temperature control systems in residential, commercial, and industrial settings.
